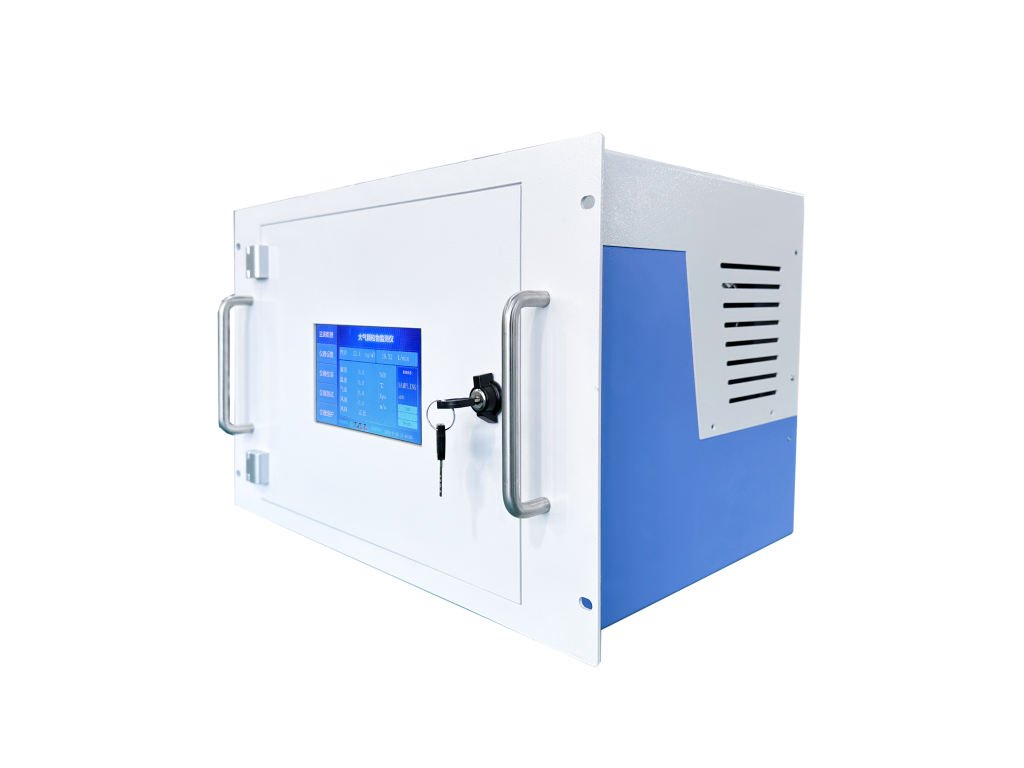

Automatic detector ZWIN-AQMS30P-PM2.5

2024/04/08 poeira voadora produtos 466 0

Technical data

Measuring range – 0-1.0 mg/m3 0-10mg/m3 optional

Min LOD – ≤0.005mg/m3

parallelity – ≤±7% or 5 μg/m3

Power supply – AC220V±10%,50Hz±1Hz

Timing error – 10kPa

Sampling flow deviation – 16.7LPM ±2%

Operating temperature – 0-40℃

Features

storage capacity can reach to 1,000,000. On board storage for over 20 years of data
Real-time operating system, online software upgrade
Keyboard input
One channel for sampling and analysis in case of any error caused by paper feed
Mass flowmeter to measure the flowrate, constant sampling to ensure the measurement accuracy
Automatic fault diagnosis and alarms, also capable of fixing errors remotely
Multi interface output: analog output, current output, relay output
